5515
| FBL5515-02H | FBL5515-01B | FBL5515-04E | 5515-17C | 5515-12A |
Rated voltage | 12V | 12V | 13.5V | 14.4V | 14.4V |
Rated current | 1.0A Max | 2.3A Max | 2.5A Max | 2.5A Max | 2.5A Max |
Rotational speed[RPM] | 12000±10% RPM | 17000±10% RPM | 17000±10% RPM | 18700±10% RPM | 17500±15% RPM |
Wind pressure[Pa] | ≥700Pa | ≥1600pa | ≥2350pa |  | ≥3500pa |
Category:
Sweeping robot series fan
Keywords:
- Product Description
- 参数概要
-
Design Drawings:

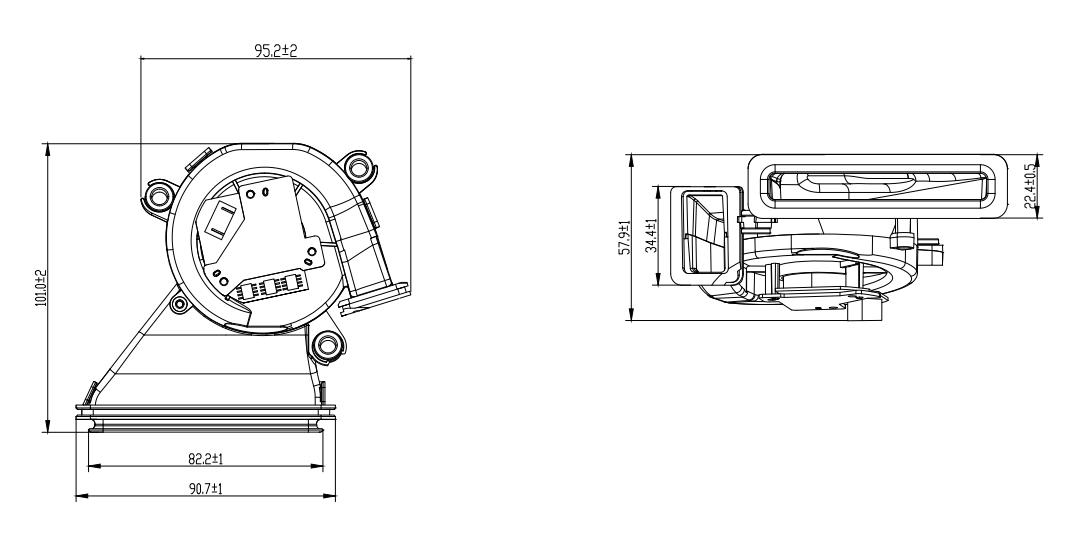

5515-02H

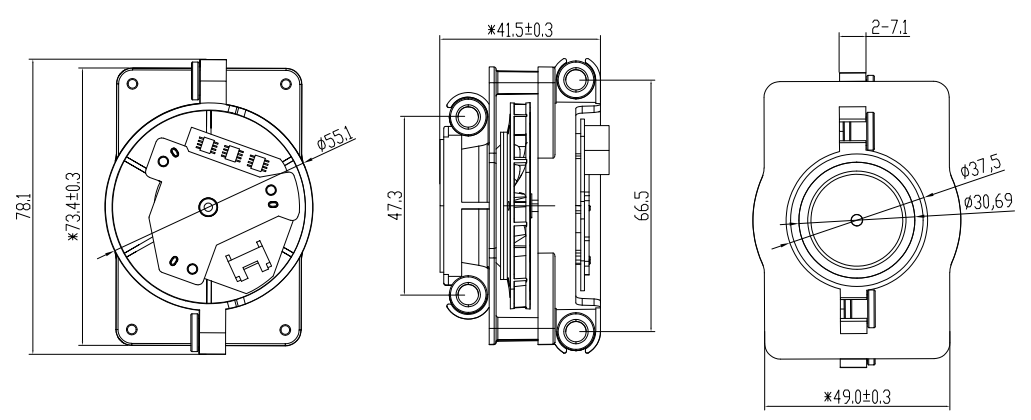

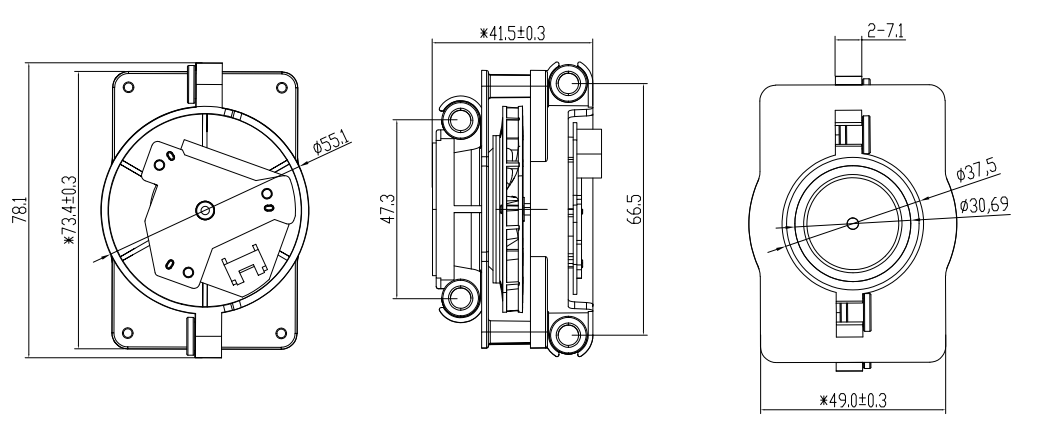

5515-01B

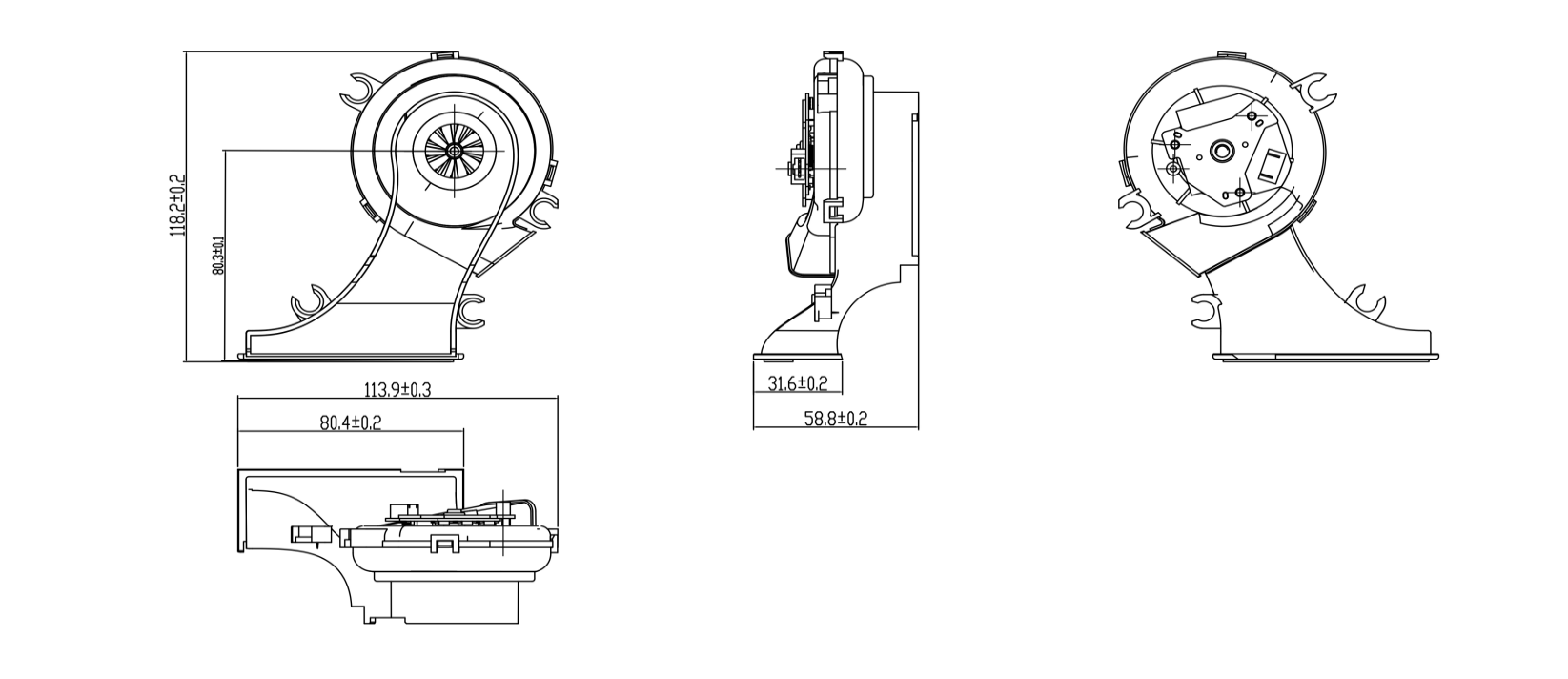

5515-04E
5515-17C

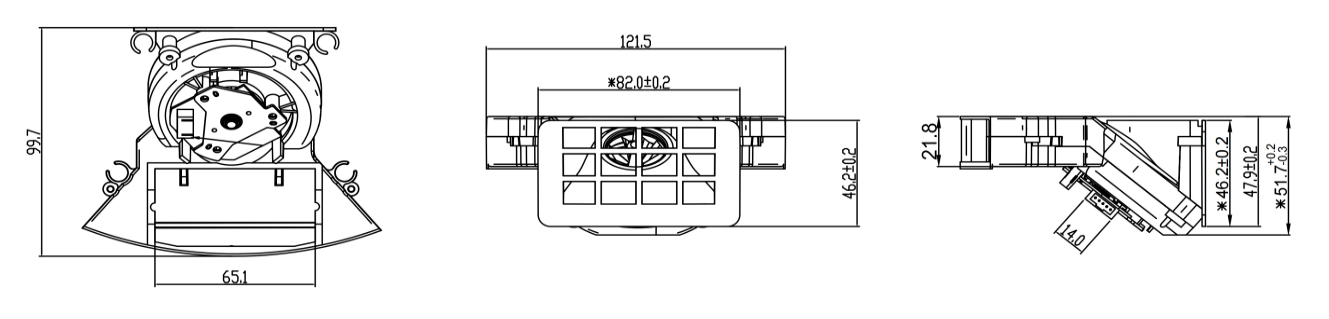

5515-12A
Main Features:
Specifications \ Model FBL5515-02H FBL5515-01B FBL5515-04E 5515-17C 5515-12A Noise 75[DdB(A)]MAX 80[DdB(A)]MAX 80[DdB(A)]MAX 80[DdB(A)]MAX 80[DdB(A)]MAX Rotation Direction CCW Counterclockwise (viewed from the output shaft end) Motor Type 3-phase 6-pole Operating Temperature and Humidity -10～50℃
0～90%
0～40℃
0～90%
Storage Temperature and Humidity -30～65℃
10～90%-30～65℃
10～90%5515-02H
5515-04E
-
FBL5515-02H
FBL5515-01B
FBL5515-04E
5515-17C
5515-12A
Rated voltage
12V
12V
13.5V
14.4V
14.4V
Rated current
1.0A Max
2.3A Max
2.5A Max
2.5A Max
2.5A Max
Rotational speed[RPM]
12000±10% RPM
17000±10% RPM
17000±10% RPM
18700±10% RPM
17500±15% RPM
Wind pressure[Pa]
≥700Pa
≥1600pa
≥2350pa
≥3500pa
