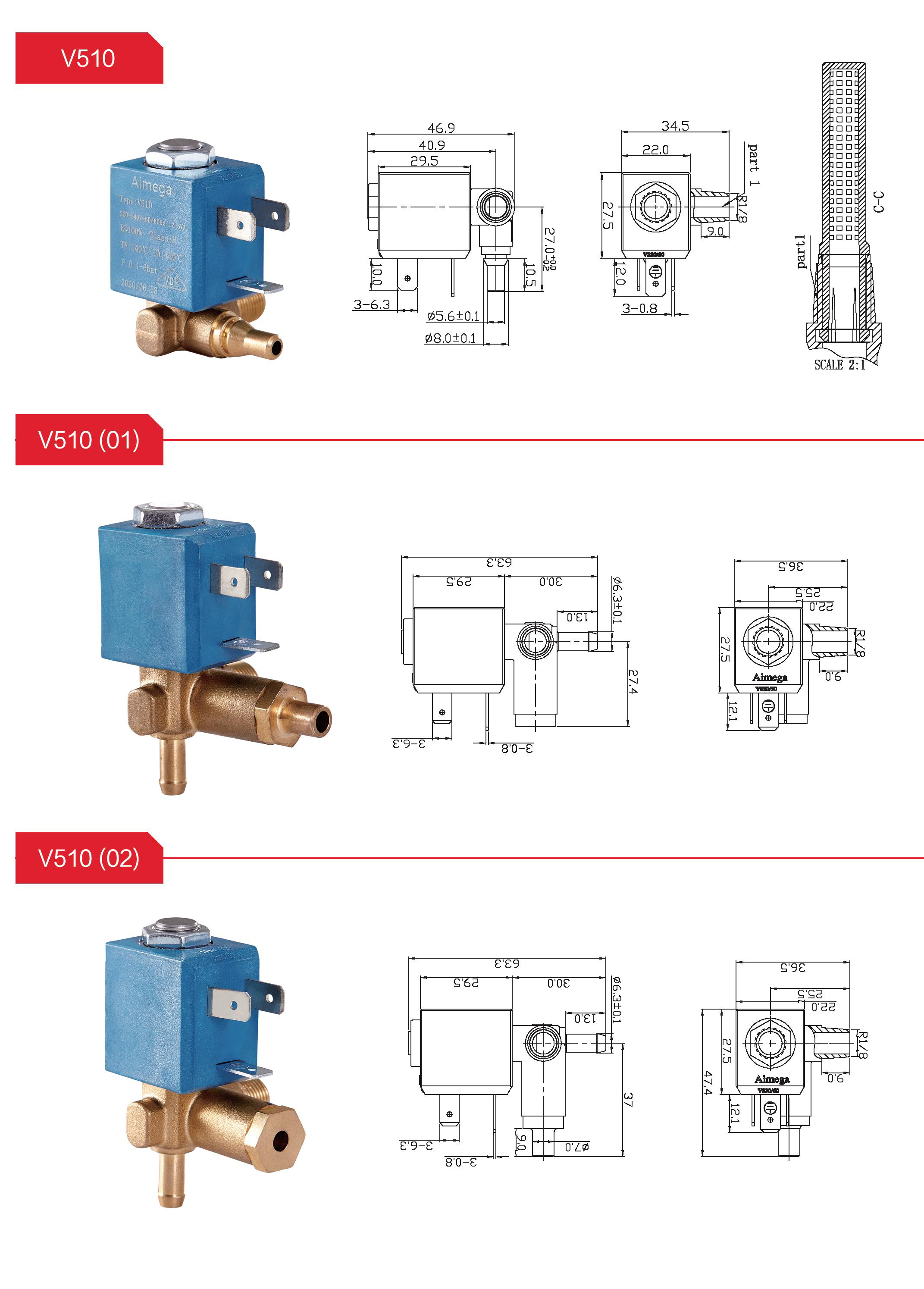

V510
Operating pressure differential | 0-6.0 Bar |
Authentication |         |
Application area | Steam iron, steam boiler equipment |
Category:
Ironing series
Keywords:
- Product Description
- 参数概要
-
Product Performance and Requirements Project Technical Parameters
Power Supply DC OR AC
Type Normally Closed Type
Voltage/Power AC 230V 50Hz 12.5VA
Working Medium Water / Air / Steam

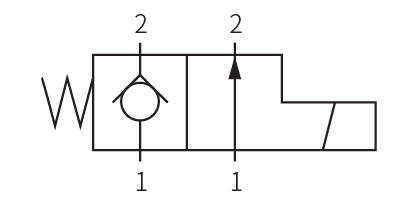

Valve Port Diameter Φ3.0 Working Principle Diagram
Working Pressure Difference 0-6.0 Bar Safety Valve Pressure Customized as Required Temperature Ambient Temperature Ta 120℃ Medium Temperature Tf 140℃ Withstand Voltage Cold State: AC1800V / 0.35mA / 1s Hot State: AC1500V / 0.35mA / 1s Functional Test Low pressure: The intake port is connected to a gas pressure of 0.4 - 0.6 bar. With an AC voltage of 190V, the solenoid valve opens and closes normally. After power-off, there is no gas leakage from the exhaust port.High pressure: The intake port is connected to a gas pressure of 5.5-6.0 bar. With an AC voltage of 190V, the solenoid valve opens and closes normally. After power-off, there is no gas leakage from the exhaust port.
Filter screens can be selected according to actual usage needs
-
Operating pressure differential
0-6.0 Bar
Authentication
Application area
Steam iron, steam boiler equipment
