D50 Magnetic cotrolled breathable explosion-proof valve
| Model | CKM002-E050 |
| Protection level | IP68 (1 meter depth, 48H), IPX9K |
| Opening pressure | 5±1KPa |
| Air permeability | ≥300mL/min@2.5kPa |
| Resistant to neutral salt spray | 720H |
| Temperature resistance performance | -40〜125℃ |
| Product lifespan | 10 years/150kkm |
| Environmental requirements | RoHS 2.0 ELV和REACH |
| Flame retardant level | UL94-V0 |
| Weight | 51.05±2g |
Category:
Battery pack magnetic explosion-proof valve
Keywords:
- Product Description
- 参数概要
-
Application areas: High voltage cabinets, large power supplies, battery packs, battery boxes, solar photovoltaics, communication equipment, LED outdoor lighting, and other fields

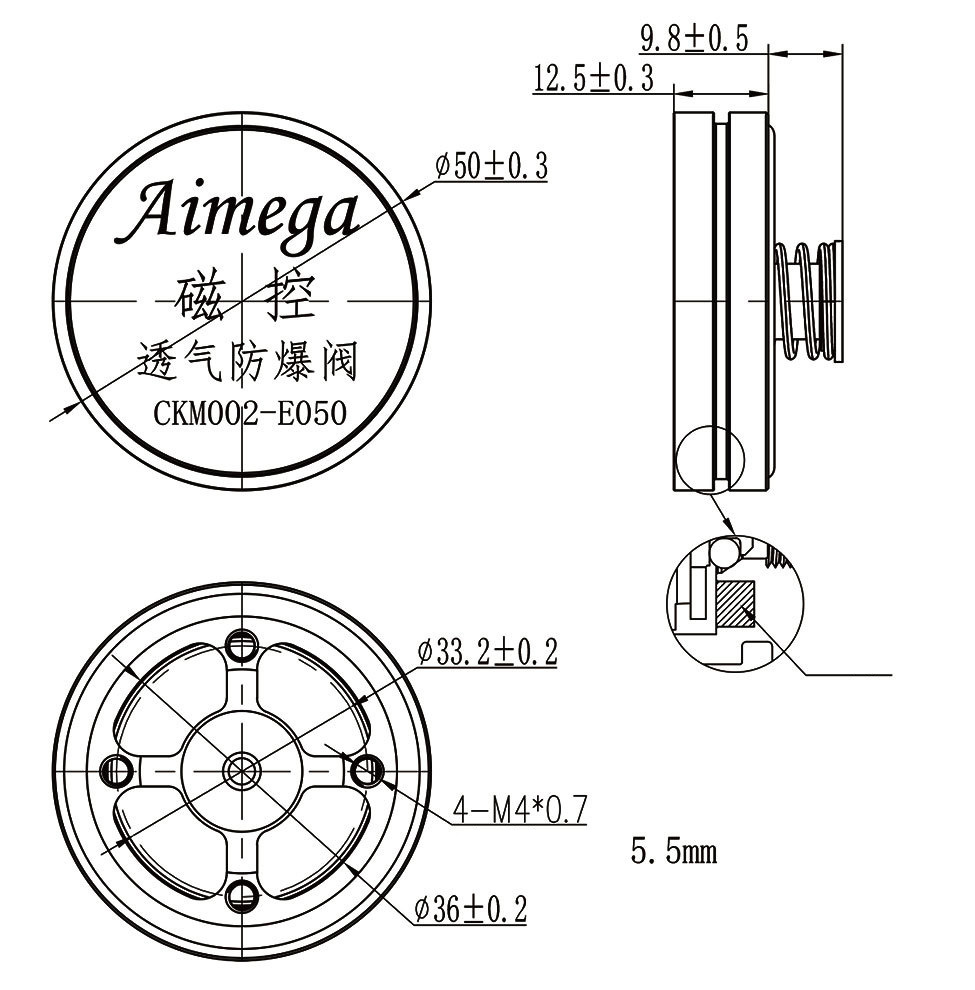

Product Dimension Drawing

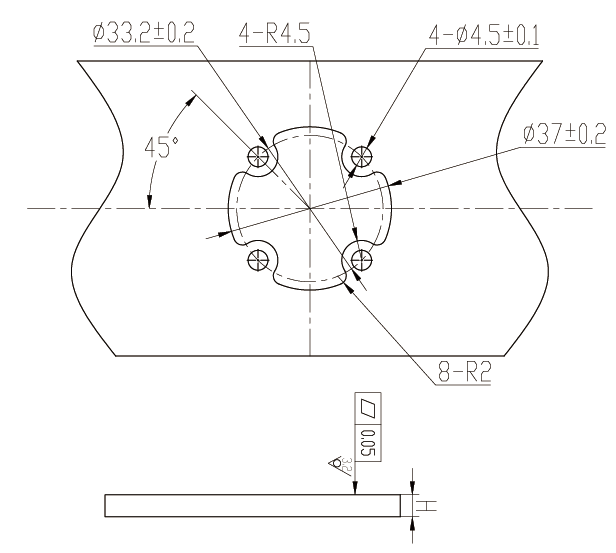

Product Installation Drawing

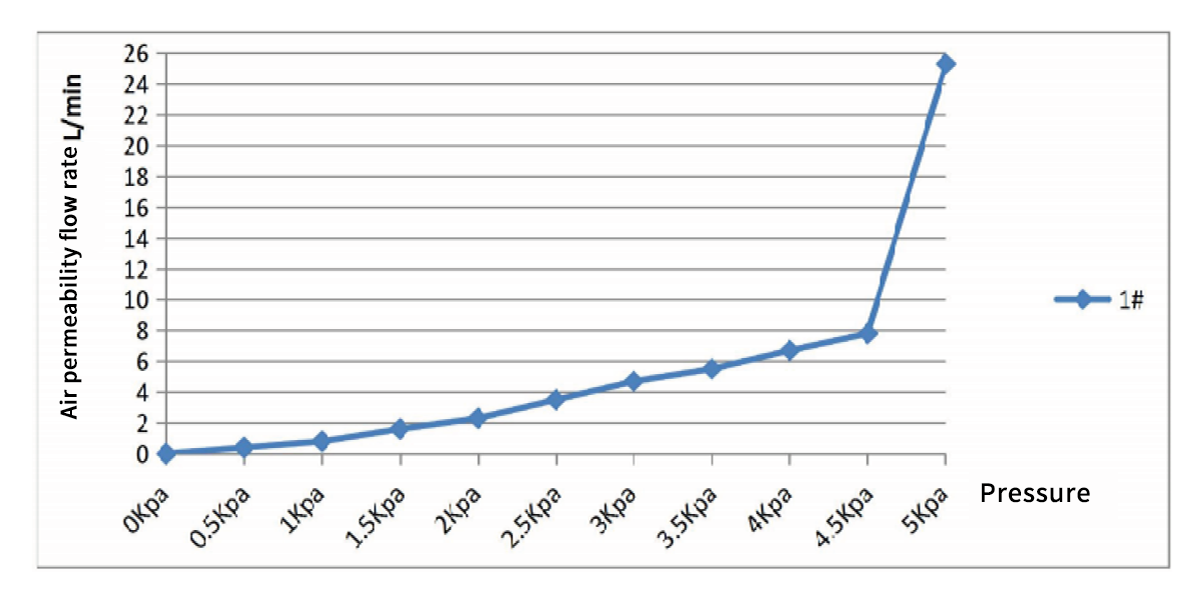

1. The ventilation rate curve of the explosion-proof valve in normal state is as follows:

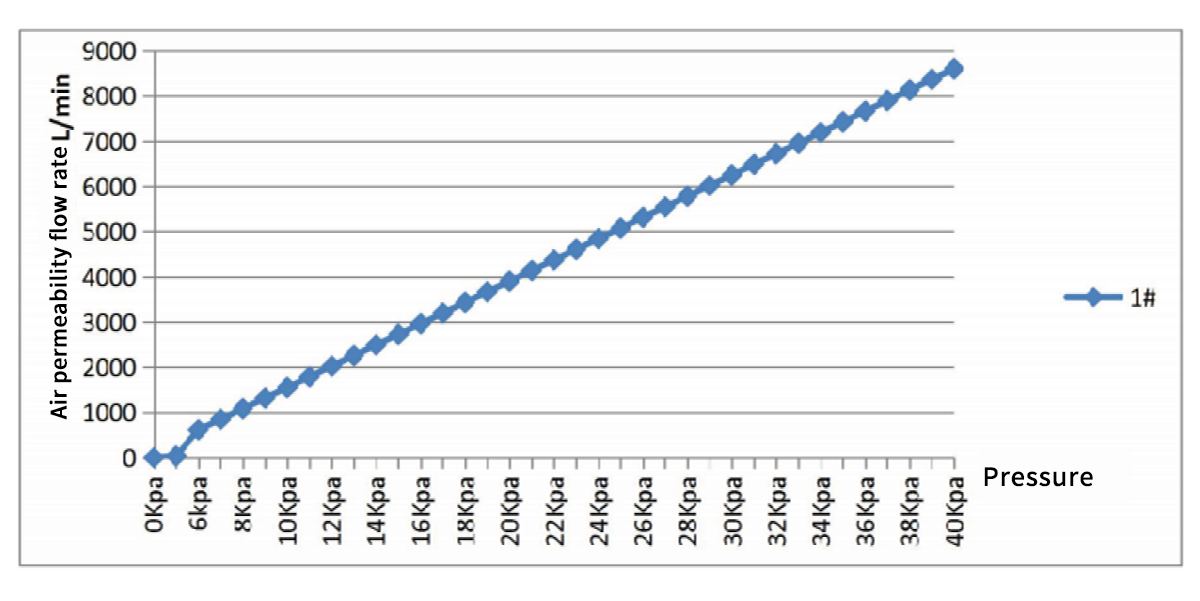

2. The ventilation rate curve after the explosion-proof valve is opened is as follows:
-
Model CKM002-E050 Protection level IP68 (1 meter depth, 48H), IPX9K Opening pressure 5±1KPa Air permeability ≥300mL/min@2.5kPa Resistant to neutral salt spray 720H Temperature resistance performance -40〜125℃ Product lifespan 10 years/150kkm Environmental requirements RoHS 2.0 ELV和REACH Flame retardant level UL94-V0 Weight 51.05±2g
