Magnetic cotrolled breathable explosion-proof valve
| Model | Flange type CKM003-E073 |
| Protection level | IP68 (1 meter water depth, 48H), IPX9K |
| Opening pressure | 5±1KPa |
| Air permeability | ≥200mL/min@2.5kPa |
| Resistant to neutral salt spray | 720H |
| Temperature resistance performance | -40〜125℃ |
| Product lifespan | 10 years/150kkm |
| Environmental requirements | RoHS 2.0 ELV和REACH |
| Flame retardant level | UL94-V0 |
| Weight | 37±5g |
Category:
Battery pack magnetic explosion-proof valve
Keywords:
- Product Description
- 参数概要
-
Flange type breathable explosion-proofvalve
Application areas: High voltage cabinets, large power supplies, battery packs, battery boxes, solar photovoltaics, communication equipment, LED outdoor lighting, and'other fields

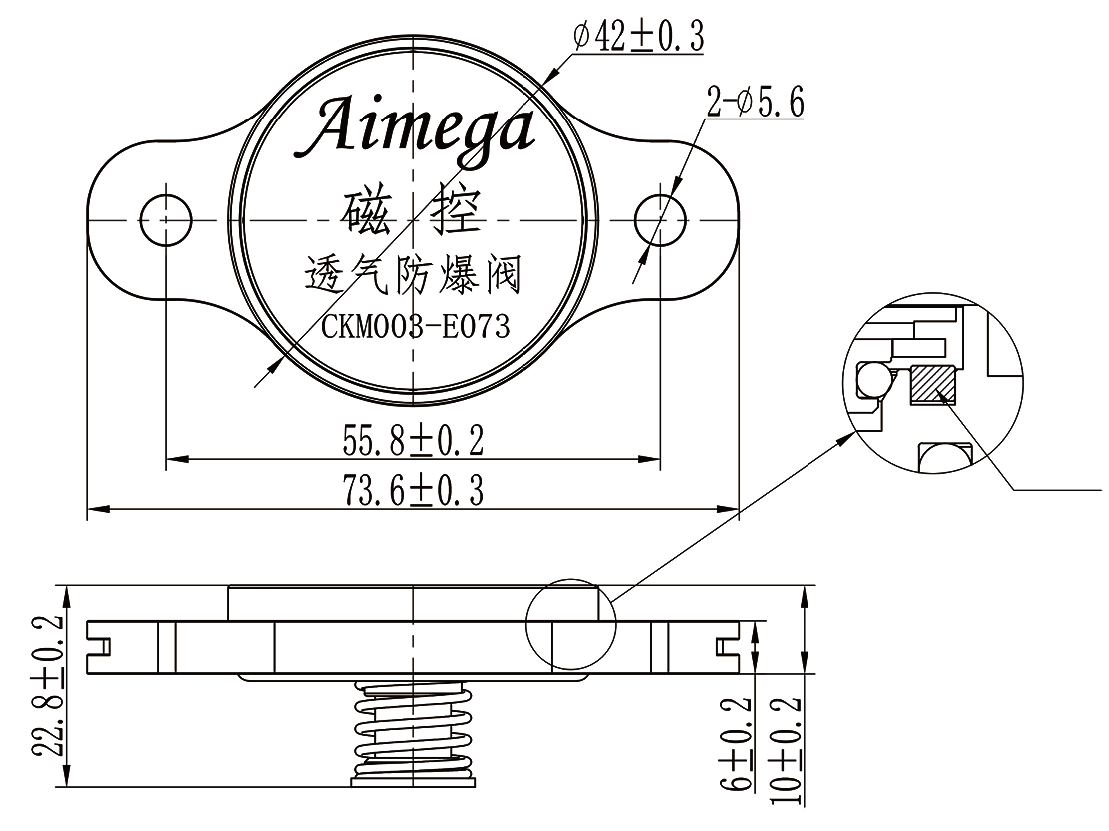

Product Dimension Diagram

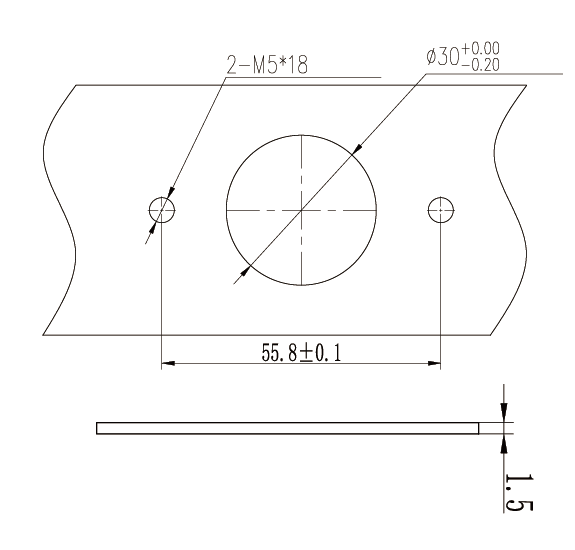

Product Installation Diagram

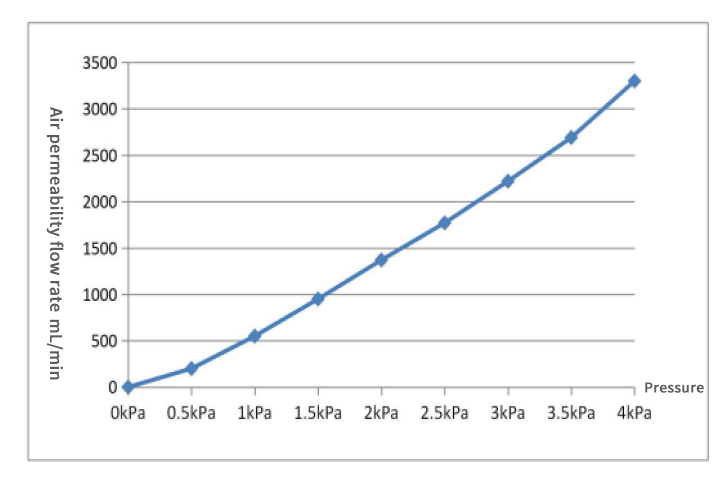

1. Schematic diagram of flow curve before explosion:

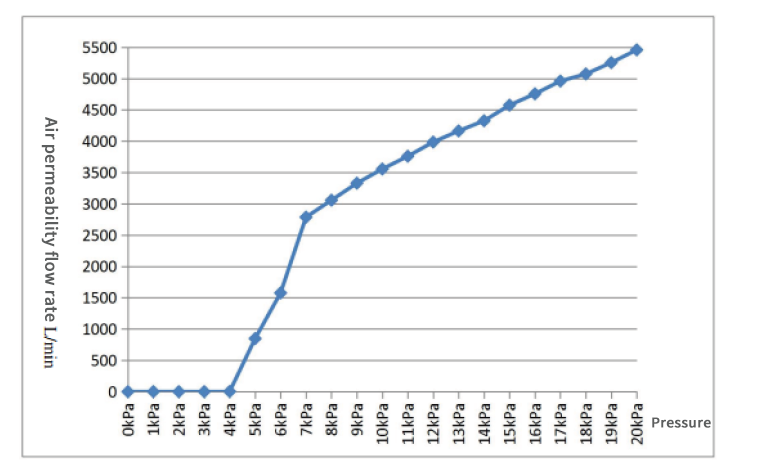

2. Schematic diagram of total flow curve after explosion:
-
Model Flange type CKM003-E073 Protection level IP68 (1 meter water depth, 48H), IPX9K Opening pressure 5±1KPa Air permeability ≥200mL/min@2.5kPa Resistant to neutral salt spray 720H Temperature resistance performance -40〜125℃ Product lifespan 10 years/150kkm Environmental requirements RoHS 2.0 ELV和REACH Flame retardant level UL94-V0 Weight 37±5g
