SPM

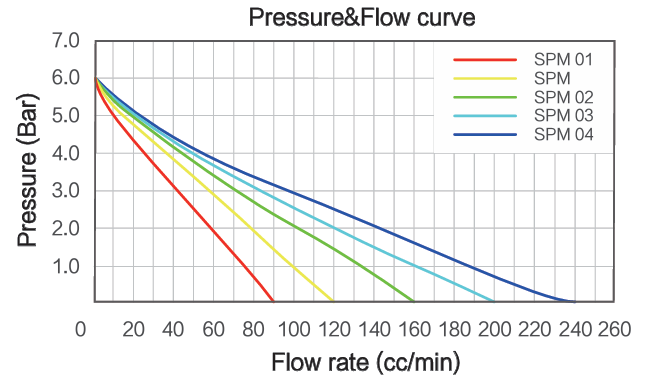

Model | SPM 01 | SPM | SPM 02 | SPM 03 | SPM 04 |
Flowrate (cc/min) | 90 | 115 | 160 | 200 | 240 |
Max Pressure (Bar) | 6 | 6 | 6 | 6 | 6 |
Authentication |         | ||||
Application Area | Steam iron, vacuum cleaner, stage hood | ||||
Category:
Ironing series
Keywords:
- Product Description
- 参数概要
-
Design Drawing：
An optional water outlet nozzle is available
Model SPM 01
SPM
SPM 02
SPM 03
SPM 04
Noise(dB) 50
Power(W) 20W
Duty Cyle 1.5min ON/1min OFF
Voltage 220-240V / 50Hz、120V / 60Hz、220V / 60Hz、100V / 50-60Hz、12-36V / 50Hz
PROUCT INFORMATION Pump Desing Solenoid Pump Insulation Class H Weight 130g Outlet Connector Barb port / Thread LABORATORY TEST CONDITION ED100%Ta within40℃、Tf within35℃ Ta:Ambient temperature 1.5min ON/1min OFF Ta 60℃、Tf 35℃
Tf:Temperature of fluid water
Self-priming at 0 Bar except SV Type Note:All the preformance are intended with a tolerance ±10% Water 20℃ Ambient 25℃
-
Model
SPM 01
SPM
SPM 02
SPM 03
SPM 04
Flowrate (cc/min)
90
115
160
200
240
Max Pressure (Bar)
6
6
6
6
6
Authentication
Application Area
Steam iron, vacuum cleaner, stage hood
