Micro electromagnetic valve SPE

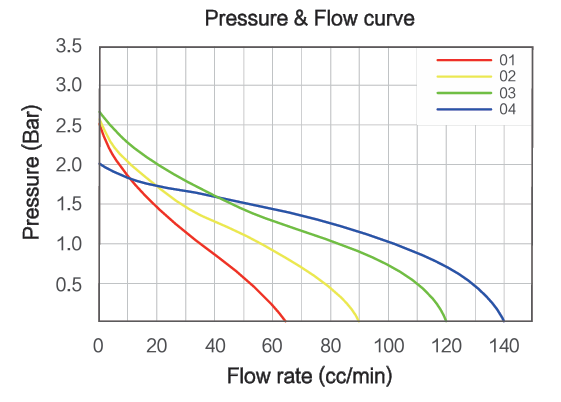

Model | SPE 01 | SPE 02 | SPE 03 | SPE 04 |
Flowrate (cc/min) | 65 | 90 | 120 | 140 |
Max Pressure (Bar) | 2.5 | 2.5 | 2.5 | 2 |
Authentication |         | |||
Application Area | Steam iron, steam brush | |||
Category:
Ironing series
Steaming and baking product series
Keywords:
- Product Description
- 参数概要
-
An optional water outlet nozzle is available
SPECIFICATIONS (SPE 0X/K39602-A 0X) Model SPE 01 SPE 02 SPE 03 SPE 04 Noise(dB) 45 45 45 45 Power(W) 9W Duty Cyle ED100% Voltage 220-240V / 50 / 60Hz 、100V / 50 / 60Hz、120V / 60Hz PROUCT INFORMATION Pump Desing Solenoid Pump Insulation Class H Weight 60g Outlet Connector Barb port LABORATORY TEST CONDITION ED100%Ta 60℃、Tf 35℃
Ta:Ambient temperature
1min ON/1min OFF Ta 80℃、Tf 35℃
Tf:Temperature of fluid water
Self-priming at 0 Bar except SV Type Suitable to dry-use only during priming Note:All the preformance are intended with a tolerance ±15% Water 20℃ Ambient 25℃
-
Model
SPE 01
SPE 02
SPE 03
SPE 04
Flowrate (cc/min)
65
90
120
140
Max Pressure (Bar)
2.5
2.5
2.5
2
Authentication
Application Area
Steam iron, steam brush
